Shrink Labelling Machine

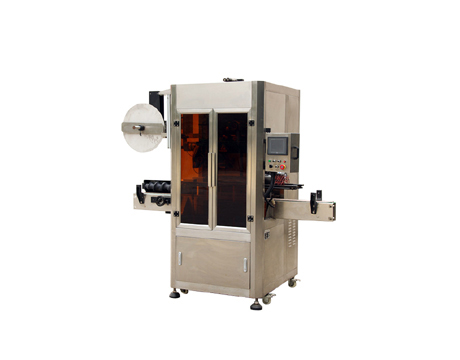

BSL100M Shrink Labelling Machine

Please call: +86-577-88346889

Desription

BSL-100M type is a kind of low-speed machine,
but it adopts equivalent PLC, positioning module，
servo motor and frequency converter. Besides,
its touch screen is featured with a humanized operation.
It adopts PLC programmable controller,
imported servo motor,servo driver,
frequency converter and transducer; besides,
it adopts the positioning module to ensure the

casting label precise, rapid and stable.

Model	BSL-100M
Power voltage	AC220V,50/60HZ
Power	1.5KW
Applicable Diameter of Bottle Body	Ф28 mm-Ф125mm
Applicable Length of Label	30 mm ~ 250mm
Applicable Thickness of Label	0.03 mm ~ 0.13 mm
Applicable Materials of Label	PVC,PET,OPS
Standard label length	100mm
Production Speed	100 bottles/min
Dimension	2100mm×850mm×2000mm
Machine weight	300Kg
