Carton Sealer

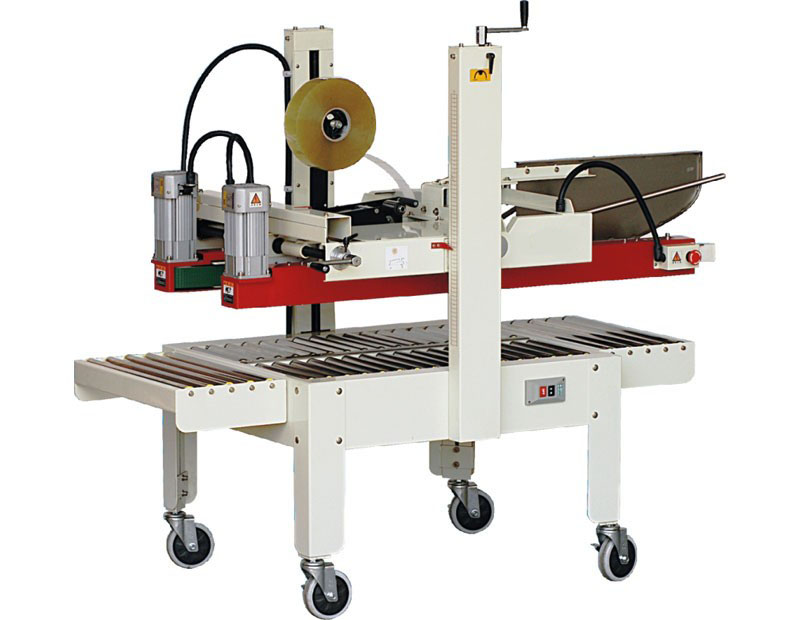

AS323 Carton Sealer

Please call: +86-577-88346889

Desription

Options:

◆ Top and Bottom drive belts, Carton go smoothly

◆ Side drive belts
◆ 2.5" Top and Bottom Tape Head
◆ Tape Overlap length can be adjusted from 5~50mm
◆ Suitable for side open cartons of beverages, floor tiles
◆ Suitable for top & bottom open, small size cartons
◆ Crank Handle adjustments
◆ Leg height adjustment 240mm
◆ Options: 3 inch side sealing are optional

Infeed table & Outfeed table

Model	AS323
Conveyor Speed	20m/min
Max. Packager Size	L600×W500×H600mm
Min. Packager Size	L200×W150×H100mm
Width Of Tape	36mm,48mm,50mm,60mm
Power Supply	110V,220-240V/50-60Hz
Power Consumption	0.18KVA
Machine Size	2000×890×1220mm
Machine Weight	190kg
