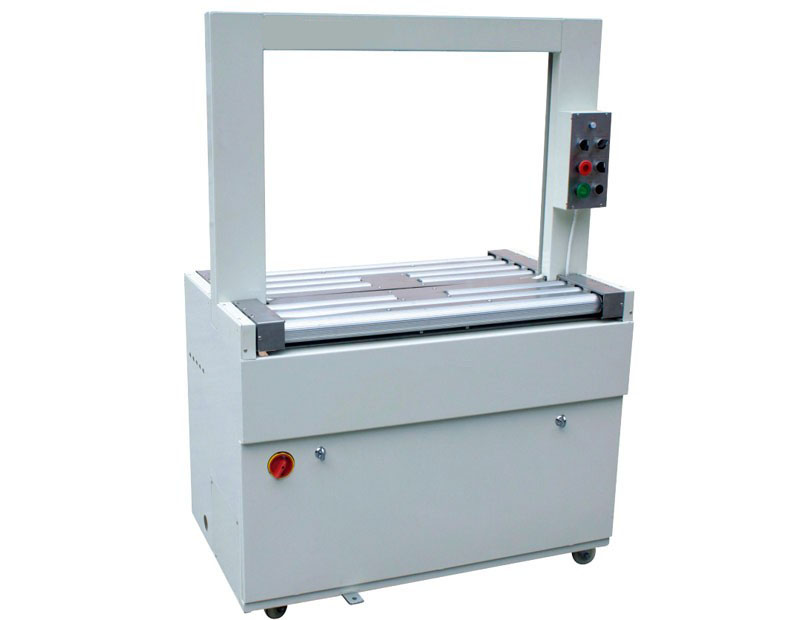

AP8060C Strapping Machine

Options:

◆ Rapid speed: 2.0sec/per cycle, 30cycles/per min

◆ Easy Maintenance: No Greasing, Mechanism is stable and durable, Easy operation
◆ Tension Adjustment: Can be adjustable at well, Max. Tension is over 90kgs
◆ Precision Structure: Main machine's component is made of aluminum alloy. Control System is compatible
◆ Add on a safety device, built for 24 hrs continuous operation
◆ Easy loading or unloading: To load or unload the strapping roll is convenient due to the dispenser is placed outside
◆ Extensive applications: Can be independent operation or combine with other machines for unmanned
◆ Electric appliance adopted: "MITSUBISHI" PLC control, and "ORMON" photoelectric switch control(AP8060)

◆ Optional: any arch size

Model	AP8060C
Strapping Tension	40-600N adjustable
Strapping Speed	2.18Sec./Strap
Strap Width	9,12,15mm
Arch Size	800×600mm
Power Supply	220V,380V/50-60Hz
Power Consumption	0.9KVA
Machine Size	1120×630×1540mm
Machine Weight	220kg
